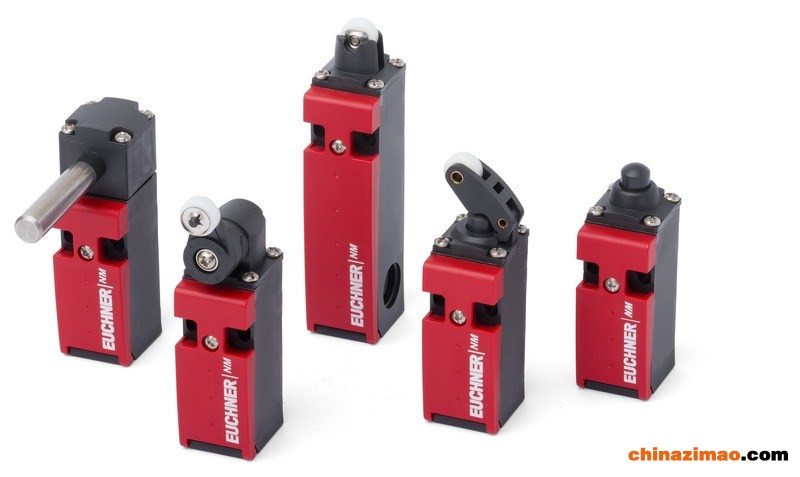

NM11AG-M|EUCHNER安全开关|图巴艾 | 昆山图巴艾自动化设备有限公司EUCHNER安全开关面向全国火热招商。
Mechanical figures and environment
Design Long housing
Housing material Reinforced thermoplastic
Ground
Net 0,1 kg
Ambient temperature -20 ... 80 °C
Degree of protection according to IEC 60529 IP67
Mechanical life 4 x 106
Contact material Silver alloy, gold flashed
Switching principle Slow-action switching contact
Installation position Any
Number of door position positively driven contacts 1
Number of door position NO contacts 1
Connection
3 x M16 x 1.5
Approach speed
max. 60 m/min
Actuating element
Plain bearing plastic Hinged actuator hollow shaft
Actuation frequency 5000 1/h
Actuating torque 0,1 Nm
Electrical connection ratings
Thermal rated current Ith 4 A
Utilization category acc. to EN 60947-5-1
AC-15 4A 230V
DC-13 4A 24V
Short circuit protection according to IEC 60269-1
(Fuse) 4A gG
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
switching voltage
Min. at 10mA 12 V
Switching current
Min. at 24V 1 mA
Connection cross-section 0,34 ... 1,5 mm2
